Biamp Conferencing System Bundle ST5S-2EXS8
Equipment Sales & Professional Installation
MPN: ST5S-2EXS8CMCMSA180
- Complete bundle with two Desono DX-S8 surface-mount speakers and a JBL CSMA 180 mixer-amplifier
- 8-inch two-way coaxial speakers deliver high output with low distortion
- Uniform 110° x 110° coverage from coaxial HF/LF drivers
- Drives 8-ohm, 4-ohm, 70V, and 100V audio without a separate transformer
- Crown DriveCore technology for fanless, 1U rack-space operation
- ClickMount pan-tilt brackets and universal power supply simplify installation
- Zoom Certified speakers with ETL, UL 1480A, CSA, CE, and RoHS compliance
Specifications
Desono DX-S8 Loudspeaker
| Type | Two-way 8-inch coaxial surface-mount |
|---|---|
| Operating Range | 62 Hz - 18 kHz |
| Drivers | 1 x 8" LF, 1 x 1.25" HF |
| Sensitivity | 94 dB (1W/1m) |
| Dispersion | 110° x 110° (H x V) |
| Power | 175W continuous, 700W peak |
| Impedance | 7 ohm |
| Maximum Output | 116 dB @1m (126 dB peak) |
| Transformer Taps | 70V: 120/60/30/15W; 100V: 120/60/30W |
| Dimensions (H x W x D) | 15.16" x 10.04" x 14.48" (385 x 255 x 368 mm) |
| Weight | 17 lbs (7.71 kg) |

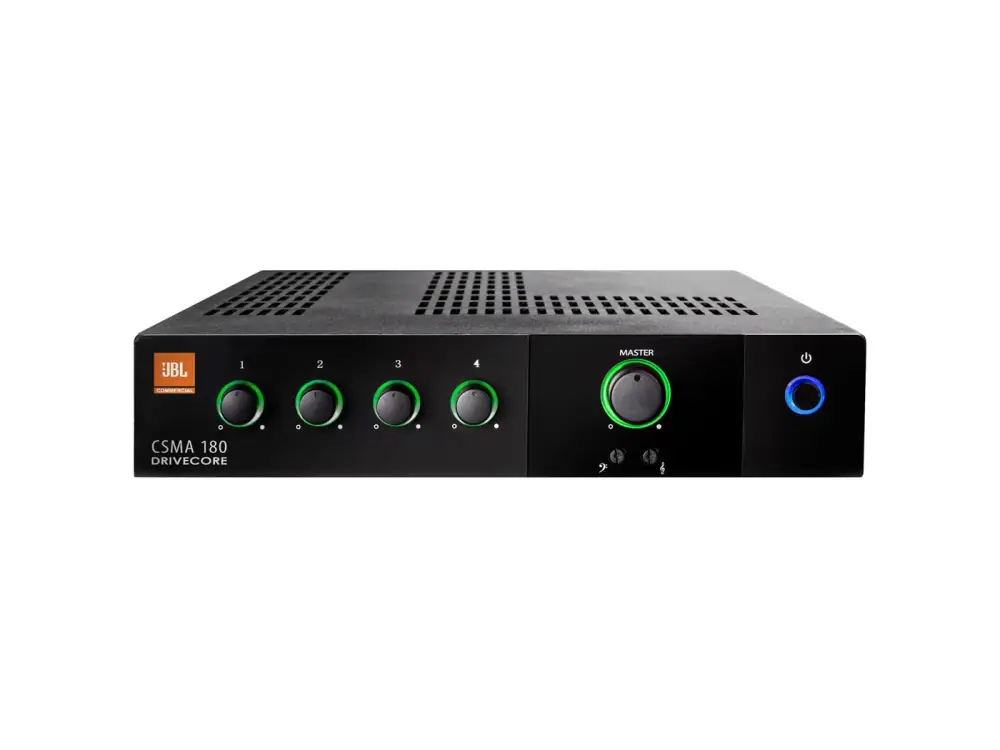

JBL CSMA 180 Mixer-Amplifier
| Technology | Crown DriveCore, fanless |
|---|---|
| Channels | Single channel, 4 mixer channels |
| Load Support | 8 ohm, 4 ohm, 70V, 100V |
| Inputs | Balanced mic/line, unbalanced RCA, RJ45 (CSR-V) |
| Power Supply | Universal 100-240 VAC, 50/60Hz |
| Warranty | 3-year no-fault transferable |
Compliance
| Certifications | ETL, UL 1480A, CSA 62368-1, CE, RoHS; Energy Star |
|---|---|
| Zoom | Zoom Certified (speakers) |
Documents
Ready to Use This Equipment on Your Project?
Expert recommendations, pricing, and professional installation for your space and application.
