DBXdsp-mixers

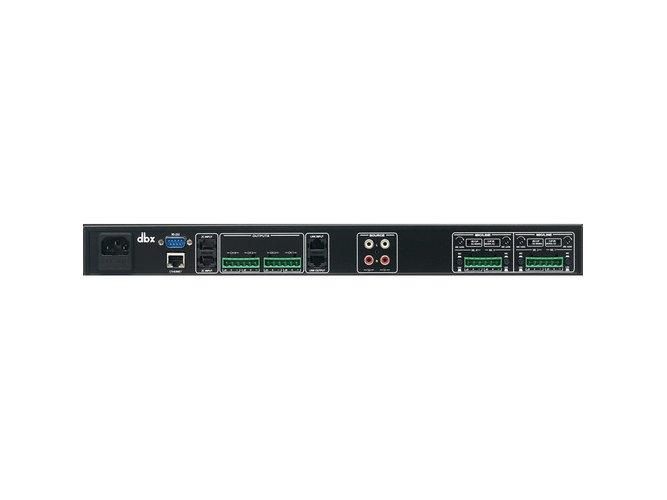

DBX ZonePRO 640
Equipment Sales & Professional Installation
MPN: ZonePRO 640
- Advanced Feedback Suppression (AFS)
- Auto Gain Control
- Compression and limiting
- Noise gating
- Parametric EQ
- Bandpass and crossover filters
- RS-232 control
Specifications
Specifications
| Input | (6 total) (2) Switchable line or mic inputs (4) RCA Source |
|---|---|
| Input Connectors | Euroblock (Line and Mic) RCA (Source) |
| Input Type | Electronically balanced/RF-filtered |
| Input Impedance | 50k ohm balanced, >75k ohm unbalanced |
| Max Input | +20dBu Mic/Line, +12dBu RCA |
| CMRR | >40dB, typically >55dB @ 1 kHz |
| Mic Preamp gain | 30 to 60dB |
| Mic Preamp Equivalent Input Noise (EIN) | <-118dB |
| Mic Preamp Phantom Power | 15V |
| Output | 4 total |
| Output Connectors | Euroblock |
| Output Type | Electronically Balanced, RF Filtered |
| Output Impedance | 120 ohms balanced, 60ohm unbalanced |
| Max Output | +20dBu |
| A/D Converter | dbx Type IV conversion system |
| A/D Dynamic Range | (line) >113 dB, A-weighted, >110 dB unweighted |
| Type IV Dynamic Range | >119dB, A-weighted, 22kHz; BW: >117dB, unweighted, 22kHz BW |
| Digital Output | RCA 24-Bit oversampling |
| Digital Output Dynamic Range | >114 dB A-weighted, 110dB unweighted |
| Sample Rate | 48kHz |
| D/A Dynamic Range | 112 dB A-weighted, 109dB unweighted |
| Dynamic Range | >109 dB A-weighted, >106 dB unweighted |
| THD+Noise | 0.003% typical at +4dBu, 1kHz, 0dB gain |
| Frequency Response | 20Hz - 20kHz, +/-0.5dB |
| Interchannel Crosstalk | >80dB typical |
| Propagation Delay | 0.6 msec |
| Operating Voltage | 100VAC 50/60Hz, 120VAC 60Hz and 230VAC 50/60Hz |
| Power Consumption | 29 W |
| Unit Weight | 6.8 lbs.(3.1 kg) |
| Shipping Weight | 8.8 lbs. (4.0 kg) |
| Dimensions | 1.75" H x 5.75" D x 19" W |
| Safety Agency Certifications | UL 600065, IEC 60065, EN 55013, E60065 |
