Denon AVR-S980H
Equipment Sales & Professional Installation
MPN: AVR-S980H
- 7.2 Channels
- 90 watts per channel
- Dolby Atmos and DTS:X
- 4K/8K HDMI
- HEOS whole-home streaming
- Audyssey room calibration
Specifications
Technical Information
| Number of Processing Channels | 7.1 |
|---|---|
| Subwoofer Out | 2 |
| Number of Power Amps | 7 |
| Power Output | 90 watts per channel (8 ohm, 20Hz-20kHz, 0.08% 2ch Drive) |
| Power Output | 125 watts per channel (6 ohm, 1kHz, 0.7% 2ch Drive) |
| 70% Guarantee 5ch Driven | Yes |
| Multi-Source / Multi-Zone | 2 |
| Auto Speaker Setup by Microphone | Audyssey MultEQ |
| Front Display | 1-Line FLD |
| GUI Languages | 3 |
General
| System Remote Control | RC-1263 |
|---|---|
| Power Consumption in W | 430 |
| Power Consumption No-Sound (ECO on/off) in W | 35W / 75W |
| Standby Consumption in W | 0.1 |
| CEC Standby Consumption in W | 0.5 |
| Network Standby Consumption in W | Less than 2.0 |

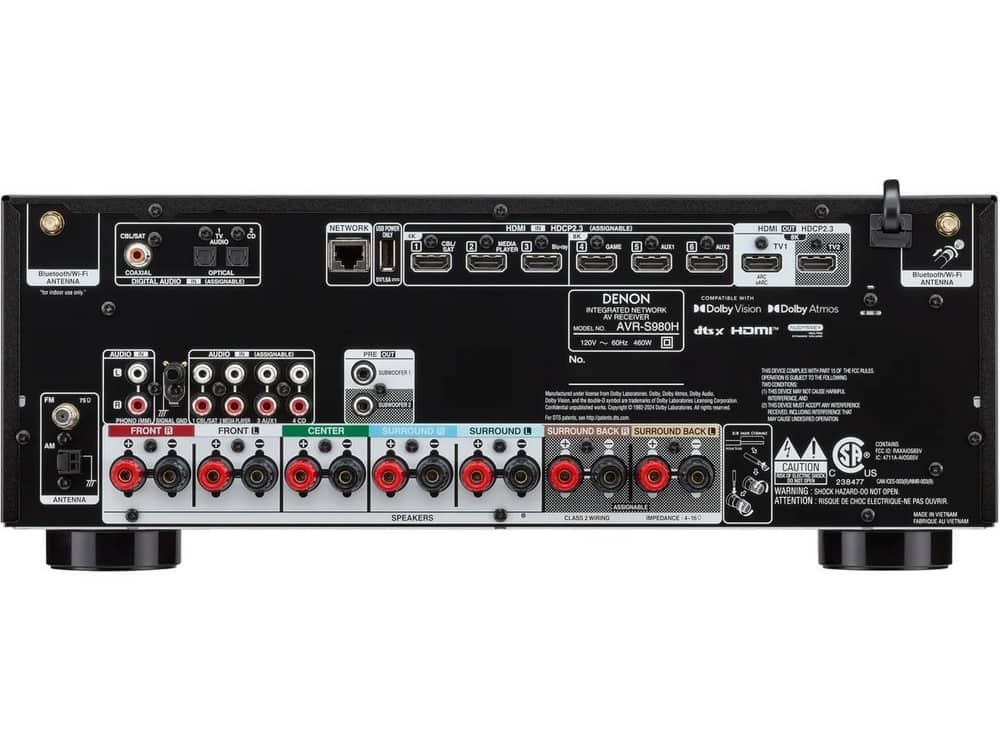

Inputs/Outputs
| HDMI In/Out | 6/2 |
|---|---|
| Analog In/Out | 4/- |
| Phono (MM) In | Yes |
| Digital In: Optical, Coaxial | 2, 1 |
| Multichannel Pre-Out | Yes (0.2) |
| Subwoofer Out | 2 |
Other
| Number of Speaker Terminals | 7 |
|---|---|
| Multi-Room Speaker Terminal | Assignable |
| AM/FM Tuner | Yes |
Dimensions
| Antenna:Horizontal: (W x D x H) in inches | 17.1 x 13.4 x 6.6 |
|---|---|
| Antenna:Vertical: (W x D x H) in inches | 17.1 x 13.4 x 9.3 |
| w/o Antenna: (W x D x H) in inches | 17.1 x 13.0 x 6.6 |
| Weight in lbs | 21.0 |
| Weight in lbs (Packaging) | 25.4 |
Documents
Ready to Use This Equipment on Your Project?
Expert recommendations, pricing, and professional installation for your space and application.
