MartinLogansubwoofers
Dynamo 10
Impeccable Precision. Indisputable Quality.
Request a quoteTalk to the team that installs it in Katy, TX. System design, screen matching and calibration included in the quote.
How we specify in Katy
Katy homes are mostly two story with open living areas and tall great room walls. That means tall studs to find, in-wall cable paths that clear the second floor, and audio sized for a large open room. We check wall construction and stud location before quoting a mount. For the Dynamo 10 specifically, we confirm the fit against your room in Katy, TX before quoting the install.
Service area: Katy, Fulshear, Cinco Ranch, Cross Creek Ranch, Grand Lakes, Firethorne, Brookshire, Richmond, Rosenberg.
Specifications
Specifications
| Digital Signal Processing | Ultra High-Resolution 500MHz Vojtko DSP Engine with 64bit processing |
|---|---|
| Frequency Response | 23-120 Hz ±3 dB (Anechoic via LFE input) |
| Low Frequency Transducer | 10" (25.4cm) high-excursion, anodized-aluminum cone in a stamped steel basket |
| Cabinet | Precision-crafted, sealed MDF enclosure featuring a robust 1-inch thick MDF woofer baffle |
| Amplifier | Magnitude MT-1kW Amplifier with 1,000W peak (500W continuous) |
| Controls (Backplate) | Level: Interactive LED Backlit Knob; Tone Sweep: Sweep Start and Pause (with status light); Power Mode: On, 12v Trigger, Auto; Wireless Audio Pairing Button (for included MartinLogan wireless transmitter) |
| Controls (via Bluetooth) | Level: -40 to 12dB (Min-Max); Low-Pass Filter (Frequency): 35-120Hz (1° Increments); Low-Pass Filter (Order): Bypass, Third, Fourth; Phase: 0-180° (1° Increments); Phase (Polarity): Normal, Inverted; Preset Listening Modes: Movie, Music, Night; 20-30Hz Level: ±10dB; Anthem Room Correction (ARC Genesis): On, Off; Tone Sweep (120-20Hz): On, Off, Pause (Frequency) |
| Wireless Inputs | Integrated Wireless Receiver, Wireless Transmitter Included |
| Inputs | Line Level: Left, Right, and LFE XLR: LFE; Speaker Level: Left and Right (requires banana plugs) |
| Power Draw | Max: 500W; Standby (Wireless Disabled): 0.5W; Standby (Wireless Enabled): <2W; *Transmitter and Subwoofer combined |
| Feet | Integrated Anti-Vibration Feet (carpet spikes included) |
| Weight | 42.8 lbs (19.4 kg) |
| Dimensions (H x W x D) | 14-3/4" x 13-3/4" x 13-3/4" (37.3cm x 34.8cm x 34.8cm) |

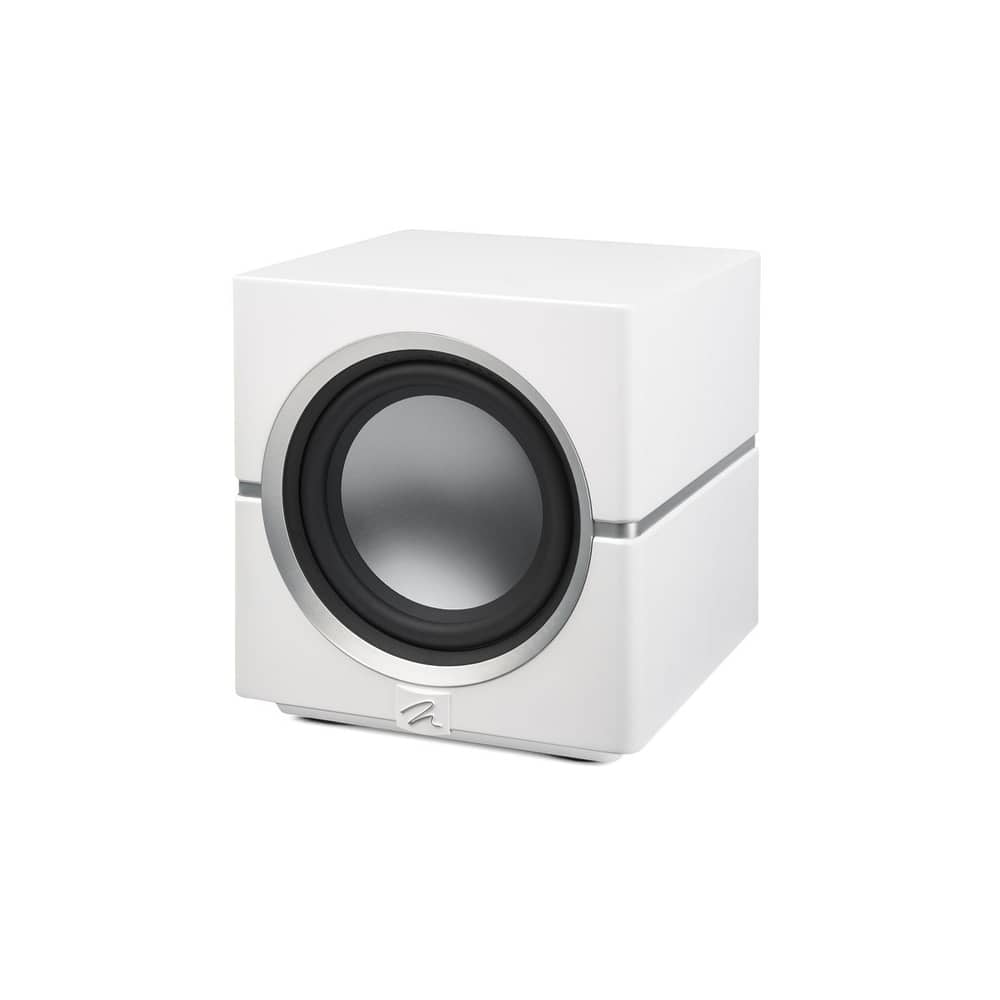

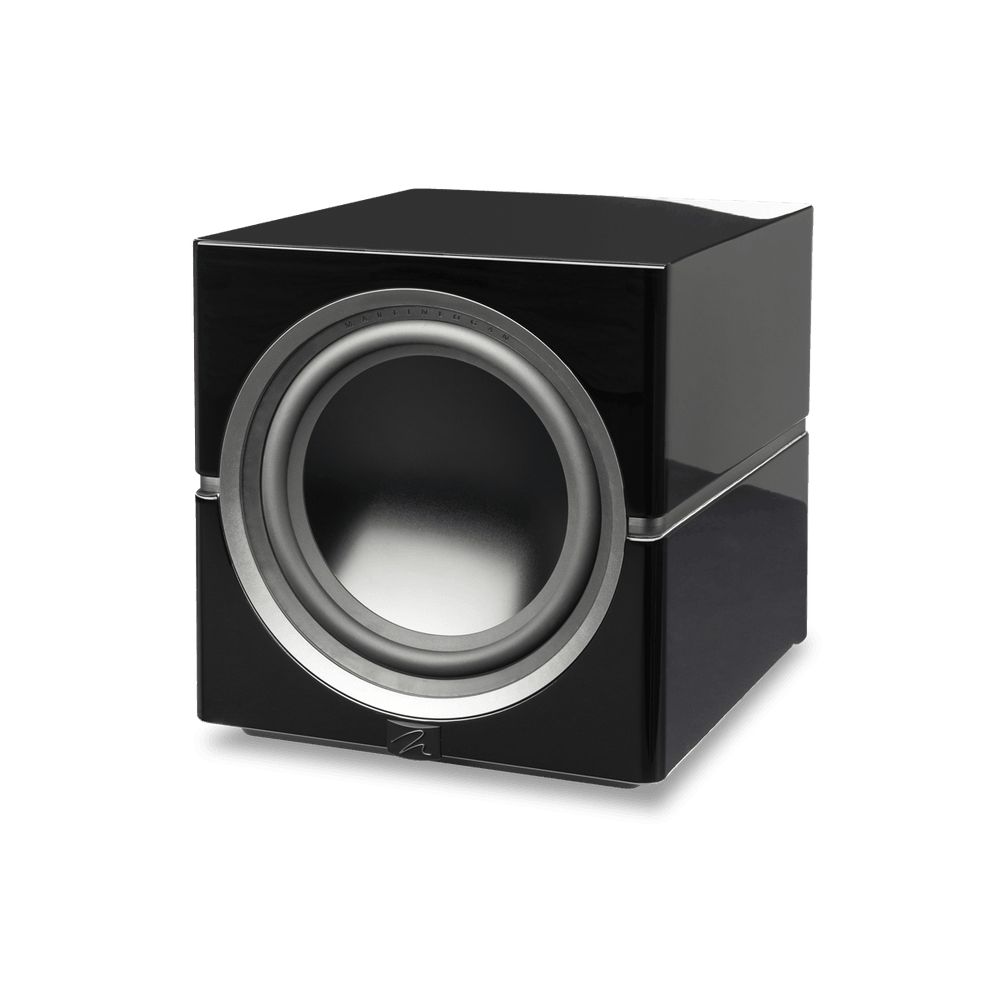

| Finish | Gloss Black or Satin White |
Features
- Seamlessly Integrating High-Performance Audio with Elegant Design
- Advanced Aluminum Woofers for Powerful, Distortion-Free Bass
- Magnitude MT-1kW Amplifier
- Advanced Vojtko DSP Engine: Elevating Subwoofer Performance
- Built-In Wireless Capability
- Sound Structure
- Robust Connectivity
- Reduced Vibration, Enhanced Bass
- Fine-Tune Your Subwoofer Settings with MartinLogan's Intuitive App
- Optimize Bass Performance with Award-Winning Anthem Room Correction
- Legendary Performance in Your Choice of Style
Documents
Want this model specified for your room?
Send us the room size, seating distance and what you watch. We will confirm the right model and screen for Katy, TX, then quote the install.
