MartinLoganspeakers
Impression ESL 11A
Astonishing Performance
Request a quoteTalk to the team that installs it in Katy, TX. System design, screen matching and calibration included in the quote.
How we specify in Katy
Katy homes are mostly two story with open living areas and tall great room walls. That means tall studs to find, in-wall cable paths that clear the second floor, and audio sized for a large open room. We check wall construction and stud location before quoting a mount. For the Impression ESL 11A specifically, we confirm the fit against your room in Katy, TX before quoting the install.
Service area: Katy, Fulshear, Cinco Ranch, Cross Creek Ranch, Grand Lakes, Firethorne, Brookshire, Richmond, Rosenberg.
Specifications
Specifications
| Frequency Response | 29-23,000 Hz ±3dB |
|---|---|
| Recommended Amplifier Power | 20-550 watts per channel |
| Horizontal Dispersion | 30° |
| Vertical Dispersion | 44" (112cm) line source |
| Sensitivity | 91 dB/2.83 volts/meter |
| Impedance | 4 Ohms, 0.6 at 20kHz Compatible with 4, 6, or 8 Ohm rated amplifiers. |
| Crossover Frequency | 300Hz |
| High Frequency Transducer | XStatTM CLSTM electrostatic transducer; » Panel Dimensions: 44" x 11" (112 x 28cm); » Radiating Area: 484 in2 (3,136 cm2 ) |

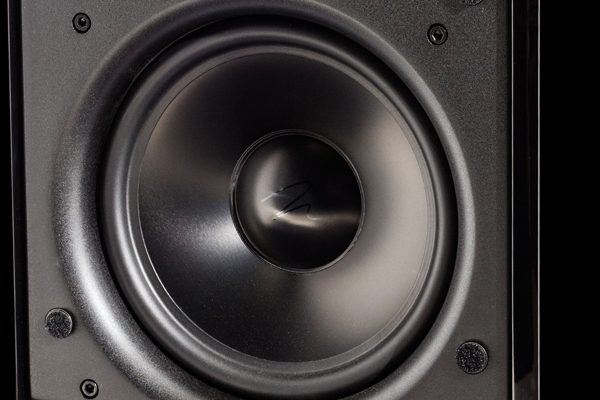

| Low Frequency Transducer | Two 8" (20.3 cm) cast basket, high excursion, rigid aluminium cone and extended throw drive assembly, non-resonance asymmetrical chamber format. |
| Amplifier | Woofer: 2 x 275 watts/channel (4 ohms), 2 x 550 watts peak |
| Room Correction (Bass Section) | Anthem Room Correction (ARCTM) ready (Sold Separately) |
| Components | Custom-wound audio transformer, air core coils, polypropylene capacitors. 24-bit DSP based preamplifier (used with woofer amplifier). |
| Audio Controls | Bass: ±10 dB under 75 Hz; Mid-Bass: -2 dB, 0 db, +2 db; ARCTM Room EQ: On, Off |
| Signal Inputs | WBT-0703Cu nextgenTM 5-way binding posts feature a filigree signal conductor made from gold plated, nickel free, non- ferromagnetic, pure copper for high conductivity and fully insulated. Free from eddy current effects. |
| Inputs | AC Power, RJ45 (for ARC), mini USB (for ARC) |
| Power Draw | Idle: < 1W/channel; Max: 500W/channel |
| Weight | 90 lbs. (40.9 kg) |
| Dimensions | 60.75" x 11.9" x 27.4 "; (154.3cm x 30.2cm x 69.6cm) |
Features
- The Immediacy of Exceptional Audio
- Achieving the Laboratory Standard in Your Own Room
- New Ultra-Rigid AirFrame Blade Design

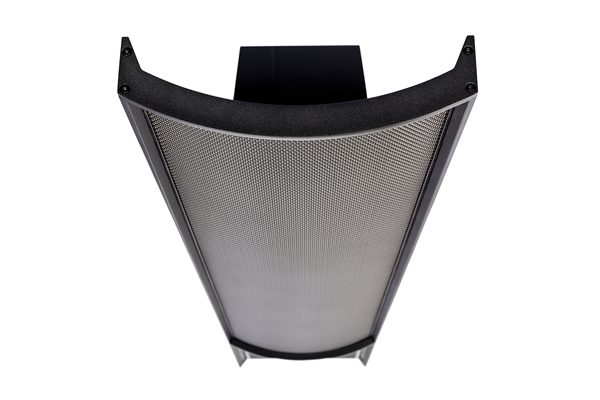

- Curvilinear Line Source (CLS) Electrostatic Panel
- Controlled Dispersion Sound Radiation
- New PoweredForce ForwardTM Bass Technology
- Turning Unused Space Into Better Bass
- New More Performance, Versatility, and Safety, with WBT Binding Posts
- Precision-Built Advanced-Topology Vojtko Crossover
Documents
Want this model specified for your room?
Send us the room size, seating distance and what you watch. We will confirm the right model and screen for Katy, TX, then quote the install.
