MartinLogansubwoofers

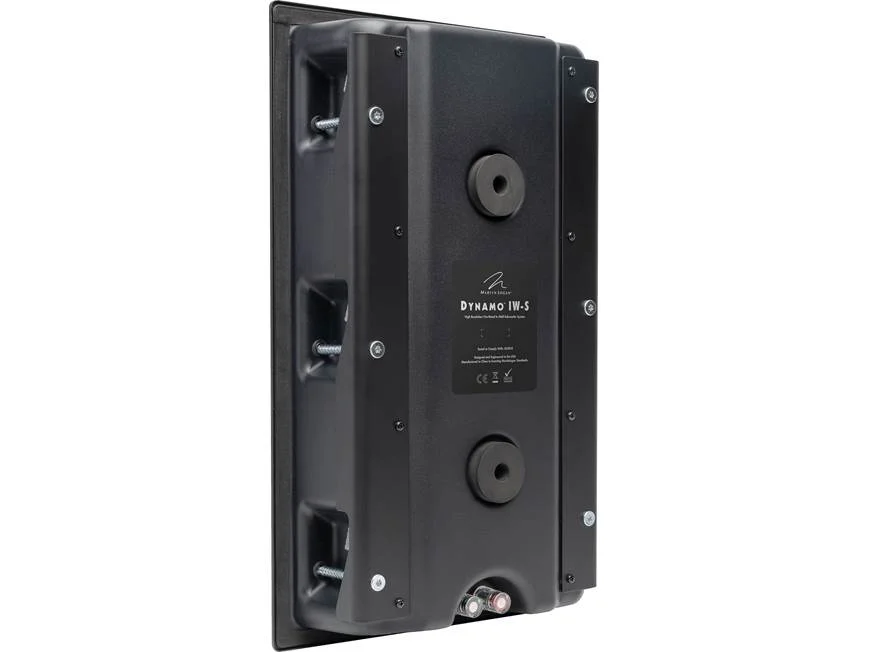

MartinLogan IW-S
Equipment Sales & Professional Installation
MPN: IW-S
- Easily Add Bass, Almost Anywhere
- Bass Without The Bulk
- Distributed Audio Made Easy
- Practical Performance
- The Hidden Alternative
- A Perfect Match
Specifications
Specifications
| Design | Dual 8" high-excursion drivers, in-wall, GRIP chassis/mounting bracket with custom steel enclosure, amplifier required (sold sep.) |
|---|---|
| Frequency Response | +/-3dB from 77->190 Hz |
| Low Frequency Extension* | 35 Hz (DIN)* |
| Max input power | 300W |
| Minimum Mounting Depth | 3-7/8" (9.8cm) |
| Low Frequency Driver | Two 210-mm (8 in) CFP carbon-fiber-reinforced polypropylene cones, 38-mm (1-1/2 in) voice coils, over-molded TPR surrounds, 38-mm (1-1/2 in) 8-layer copper wire voice coils, high-temperature polyamide formers, ceramic/ferrite magnet structures |
| Internal Volume | 7.5L |
| Suitable Amplifier Range | 50-600 W |
| Weight | 26.7lbs (12.5kg) |
| Dimensions (H x W x D) | 19-1/8" x 10-3/4" x 4.5" (48.5cm x 27.2cm x 11.5cm) |
| Cut-Out Dimensions | 18"x 9-5/8" (45.7cm x 24.5cm) |
| Finish | White, paintable |
