Planarvideo-walls

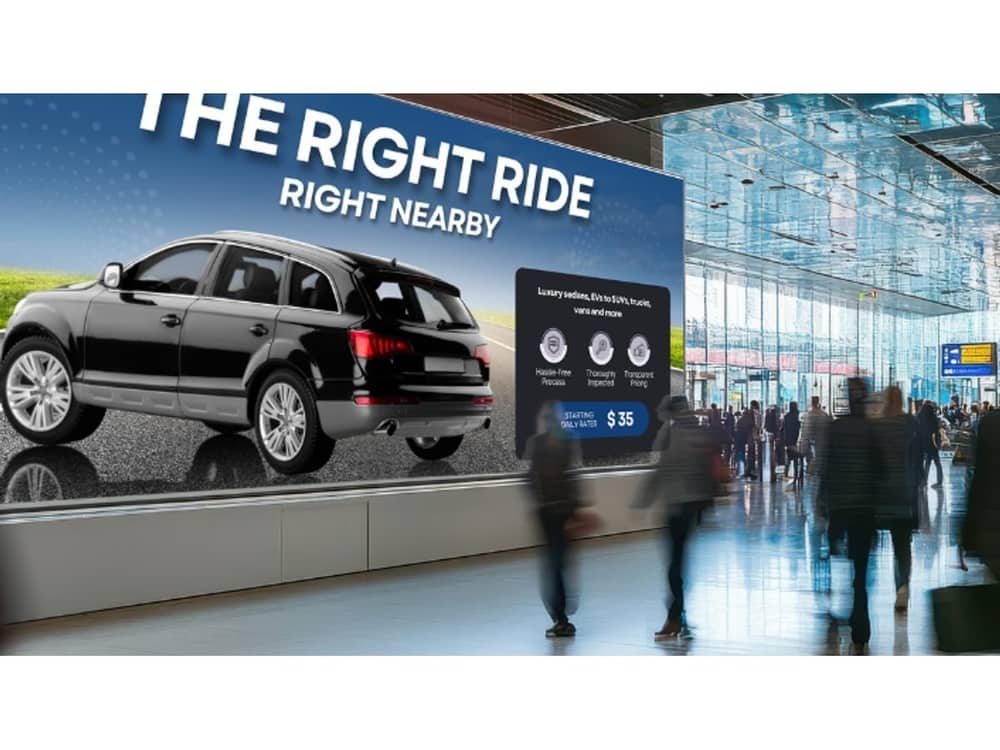

Planar Komodo Series
Equipment Sales & Professional Installation
- Chip-on-Board COB MicroLED video wall
- 0.7 to 1.2mm pixel pitches
- 16:9 and 21:9 configurations
- 95%+ DCI-P3 color gamut
- High frame-rate sources up to 120Hz
- Energy-efficient, durable design
- 3-year warranty
Specifications
Display
| Type | COB (Chip-on-Board) MicroLED video wall |
|---|---|
| Pixel Pitches | 0.7, 0.9 and 1.2mm |
| Brightness | 1,000 nits maximum |
| Color Gamut | ≥95% DCI-P3 |
| Cabinet Resolution | 640 x 360 (Komodo 0.7) |
| Frame Rate | Up to 120Hz |
General
| Cabinet Diagonal | 551mm (21.68in) |
|---|---|
| Cabinet Size | 480 x 270 x 26.0mm (Komodo 0.7) |
| Viewing Angle | >170° horizontal; >150° vertical |
| LED Lifetime | 100,000 hours typical |
| Formats | 16:9 and 21:9 |
| Warranty | 3-year standard |
Ready to Use This Equipment on Your Project?
Expert recommendations, pricing, and professional installation for your space and application.
