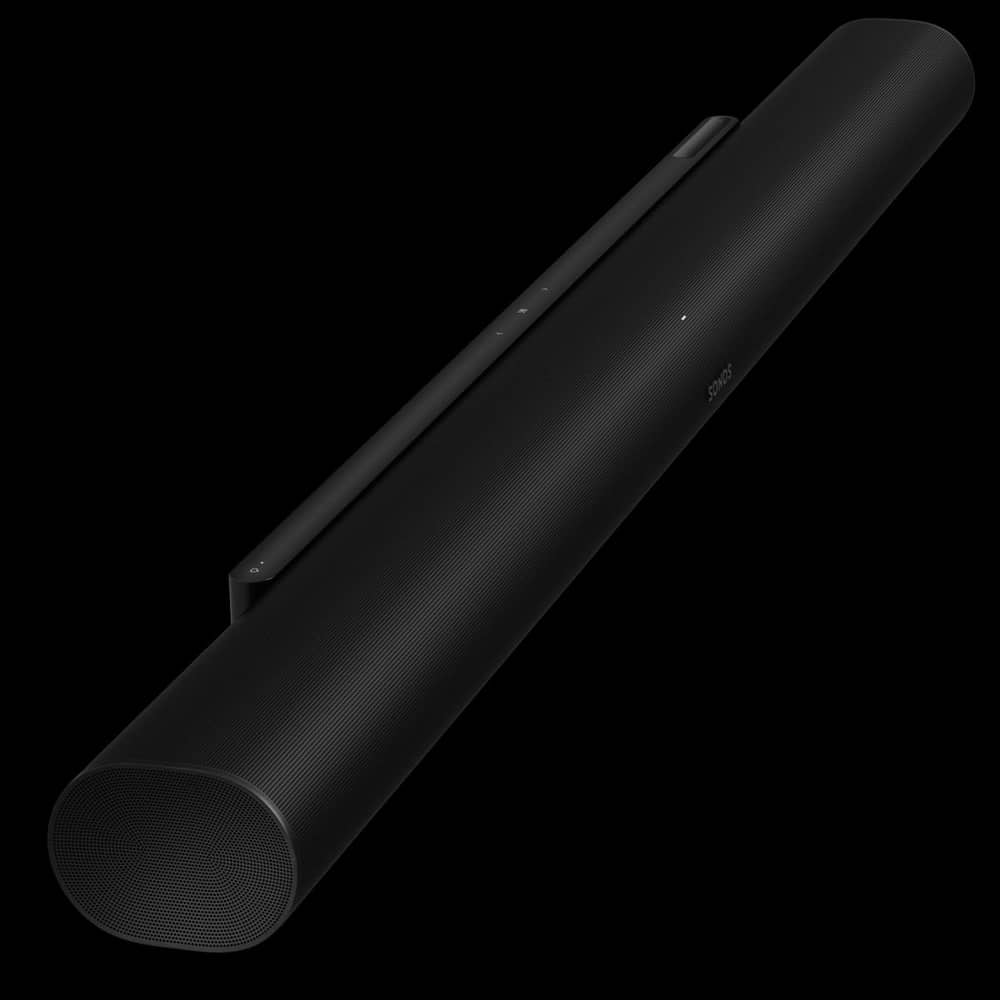

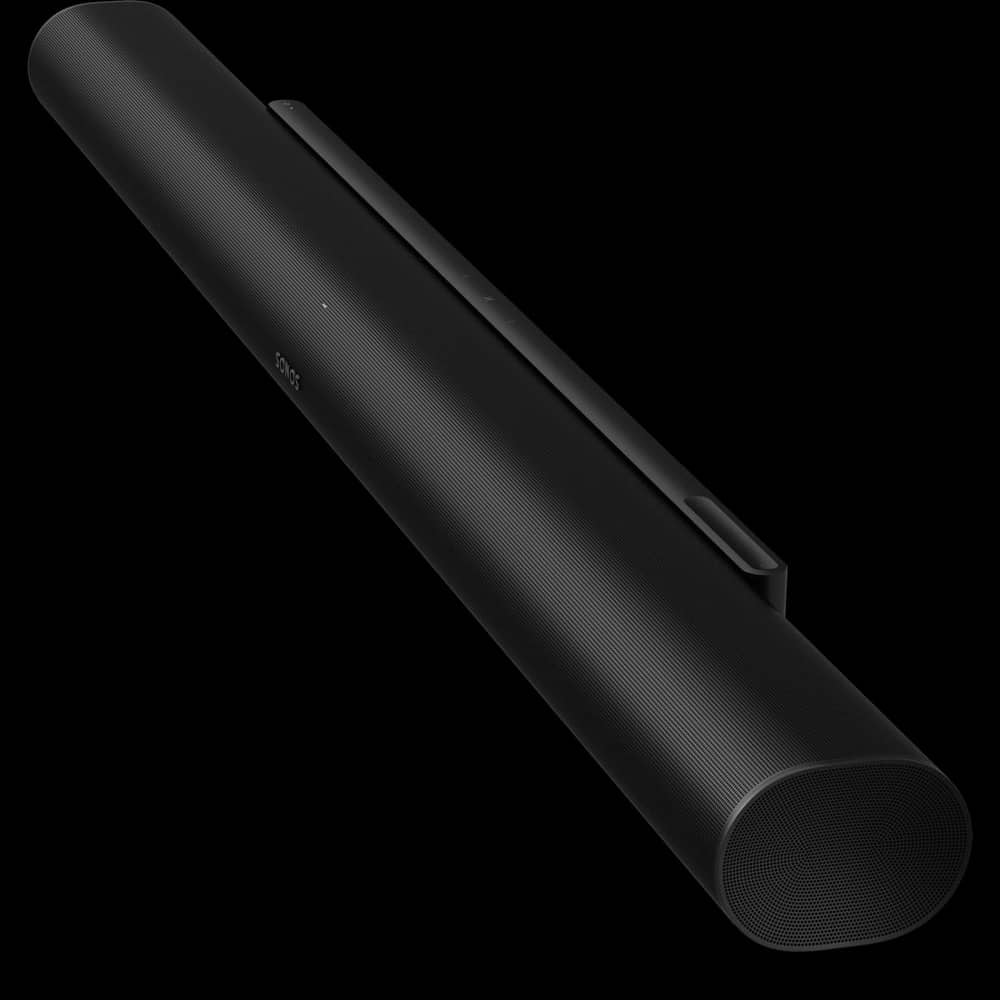

Arc Ultra
Featuring breakthrough Sound Motion™ technology for a more expansive soundstage, Arc Ultra brings your entertainment to life like no other soundbar. Experience clearer dialogue, deeper bass, and more detailed sound that precisely surrounds you from every direction - all in an unbelievably sleek design. Dolby Atmos takes immersion to a whole new dimension, creating a 9.1.4 spatial audio experience. Speech Enhancement, powered by AI, detects the human voice to clarify dialogue, giving you greater control so you never miss a word. Quickly set up Arc Ultra with the included HDMI cable, and enjoy streamlined control with your TV remote. You can also use the Sonos app, the touch controls on top of the soundbar, Sonos Voice Control, and Amazon Alexa. When your TV is off, stream music and more from all your favorite services using WiFi and Bluetooth. Add a Sonos Sub and Era 300 rear speakers for the ultimate Dolby Atmos surround sound experience. Listen all around your home when you add Sonos speakers to other rooms.
MPN: ARCG2US1BLK
How we specify in Katy
Katy homes are mostly two story with open living areas and tall great room walls. That means tall studs to find, in-wall cable paths that clear the second floor, and audio sized for a large open room. We check wall construction and stud location before quoting a mount. For the Arc Ultra specifically, we confirm the fit against your room in Katy, TX before quoting the install.
Service area: Katy, Fulshear, Cinco Ranch, Cross Creek Ranch, Grand Lakes, Firethorne, Brookshire, Richmond, Rosenberg.
Specifications
Audio
| Amplifiers | Fifteen Class-D digital amplifiers perfectly tuned to the unique acoustic architecture. |
|---|---|
| Tweeters | Nine precisely angled silk-dome tweeters create crisp high frequencies and clear dialogue. Two of these fire upward, creating dedicated height channels for spatial audio. |
| Midwoofers | Six midwoofers ensure faithful playback of mid-range frequencies. |
| Woofers | Sound Motion, a four-motor, dual-membrane woofer, delivers exceptional bass in a revolutionary flat, compact design. |
| Microphones | The far-field microphone array uses advanced beamforming and multichannel echo cancellation for quick and accurate voice control and Trueplay tuning. Disconnect by toggling off the mic switch. |
| Adjustable EQ | Use the Sonos app to adjust bass, treble, and loudness. |
| Trueplay | This software measures the acoustics of the room then fine-tunes the EQ. Compatible with iOS and Android devices. Learn more |
| Speech Enhancement | AI detects the human voice to make every word crystal-clear. With just a tap in the Sonos app, choose between four customizable levels for optimal audibility. Learn more |
| Night Sound | Turn this setting on in the Sonos app to reduce the intensity of loud sounds and increase the level of quieter sounds. Learn more |
| Home Theater Audio Formats | Dolby Atmos,* Dolby Atmos via Dolby Digital Plus, Stereo PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD,* Dolby Atmos via Dolby TrueHD,* Multichannel PCM,* Dolby Multichannel PCM* and DTS Digital Surround.** The Sonos app's Now Playing screen displays the audio format being decoded. |
| Dolby Atmos Music | Requires compatible content. Learn more |
| TV Audio Swap | Swap TV audio between the soundbar and Sonos headphones. |
Details and Dimensions
| Dimensions | Height: 2.95 in (75 mm) Width: 46.38 in (1,178 mm) Depth: 4.35 in (110.6 mm) |
|---|---|
| Weight | 13.01 lbs (5.9 kg) |
| Colors | Black, White |
| Finish | Matte |
| Mounting | M5 x 0.8mm thread pitch L6.5mm |
| Controls | Use the capacitive touch controls to play, pause, skip, replay, adjust the volume, turn off voice assistants, and group or ungroup Sonos products. Learn more |
| Bluetooth Button | Press to pair with a Bluetooth device. Learn more |
| Mic switch | Toggle off the switch on the back of the product to disconnect power to the mics. |
| LEDs | Lights on the product indicate connection, mute status, microphone activation, and errors. Learn more |
Power and Connectivity
| WiFi | Compatible with WiFi 6. Connect to WiFi with any 802.11a/b/g/n/ac/ax 2.4 GHz/5 GHz broadcast-capable router. Learn more |
|---|---|
| HDMI eARC | Connect to your TV's HDMI eARC/ARC port with the included HDMI cable. |
| Optical | Optical audio adapter sold separately. |
| Bluetooth | Bluetooth 5.3 supports audio streaming from any Bluetooth-enabled device. |
| Voltage | 100-240V 50/60Hz internal power supply |
| CPU | Quad Core 4xA55 1.9GHz |
| Voice | Works with Sonos Voice Control and Amazon Alexa . Availability of services varies by language and country. |
| Apple AirPlay 2 | Works with AirPlay 2 on Apple devices iOS 11.4 and higher on WiFi Learn more |
| TV Compatibility | Not compatible with CCFL-backlit TVs (manufactured 2004-2012) |
Box Contents
| Sonos Arc Ultra | Length: 6 ft (2 m) Learn more |
|---|---|
| HDMI Cable | Length: 4.9 ft (1.5 m) Learn more |
| Documentation | Set Up Guide and legal/warranty information |
Requirements
| WiFi | Internet connection |
|---|---|
| Power Source | Nearby electrical outlet |
| Sonos app | The latest generation of the Sonos app running on a compatible device Learn more |
Features
- Sound Motion™
- Dolby Atmos
- Voice enabled
- WiFi
- Bluetooth®
- Works with TV remote
- Trueplay™
- Speech Enhancement
- Night Sound
- HDMI® eARC
- Apple AirPlay 2
- Touch controls
- Recycled materials
Documents
Related models
Want this model specified for your room?
Send us the room size, seating distance and what you watch. We will confirm the right model and screen for Katy, TX, then quote the install.
